LED Neon Flex

LED Neon Flex Top view-M：12X12 IP68 Solid Waterproof

LED Neon Flex Lights feature a flexible design, gentle emitting ,high color consistency, IP68 waterproof .Applications include marine lighting, underwater lighting, outdoor deck lighting, shop mall lighting, and architectural lighting.

LED Neon Flex Top view-M：12X12 IP68 Solid WaterproofPRICE QUOTING
Home Product LED Neon Flex

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange, Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency&smooth illumination With invisible light dots.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

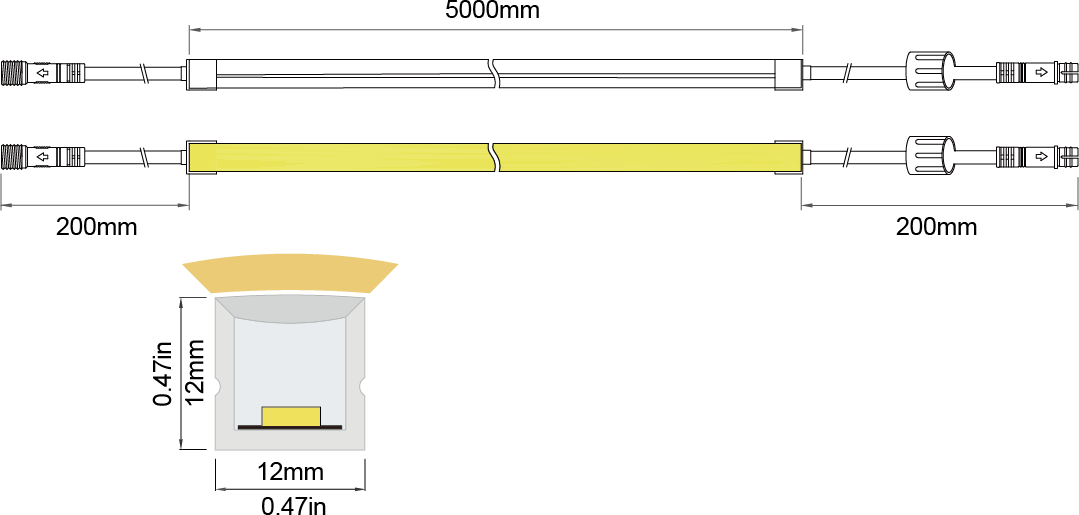

LED Neon Flex Top view-M：12X12 IP68 Solid Waterproof Technical Specifications

LED Neon Flex Top view-M：12X12 IP68 Solid Waterproof


  Model No. Colour LED
Mode 		LEDs/M CCT/
Wavelength 		Power
(W/M) 		Lumens
lm/M) 		CRI Minimum
Cutting
Length(mm) 		FPC
Width
(mm) 		Maximum
connection
length
NF-C27140C-BT 2700K 2835  140  2600-2800 10.0  927  90  50  8  12M
NF-C30140C-BT  3000K 2835  140  2850-3300 10.0  932  90  50  8  12M
NF-C40140C-BT 4000K 2835  140  3850-4400 10.0  935  90  50  8  12M
NF-C50140C-BT 5000K 2835  140  4800-5400 10.0  940  90  50  8  12M
NF-C65140C-BT 6500K 2835  140  5600-7000 10.0  940  90  50  8  12M
NF-CRE140C-BT Red 2835  140  620-625nm 10.0  318  一 50  8  12M
NF-CGR140C-BT Green 2835  140  520-525nm 10.0  403  一 50  8  12M
NF-CBL140C-BT    Blue 2835  140  460-465nm 10.0  210  一 50  8  12M
NF-CYE140C-BT Yellow 2835  140  590-595nm 10.0  689  一 50  8  12M
NF-CPI140C-BT Pink 2835  140  一 10.0  650  一 50  8  12M
NF-COR140C-BT Orange 2835  140  600-610nm 10.0  273  一 50  8  12M
NF-CTW120C-BT    WW-CW 2835  120  2700-6500 2*8 685  90  50  8  10M
NF-GRG120C-BT    RGB 3535  120  RGB 12.0  452  一 50  8  7.5M

Specification Data
