LED Neon Flex

LED Neon Flex 3-face view-Mini:10X6 IP68 Solid Waterproof

LED Neon Flex Lights feature a flexible design, gentle emitting ,high color consistency, IP68 waterproof .Applications include marine lighting, underwater lighting, outdoor deck lighting, shop mall lighting, and architectural lighting.

LED Neon Flex 3-face view-Mini:10X6 IP68 Solid WaterproofPRICE QUOTING
Home Product LED Neon Flex

Specifications

(1)Waterproof IP68 and IK08.
(2)Fully encapsulated with PU, can be used underwater.and more in the depth up to 2m
(3)UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
(4)Solvents and sea water resistant.
(5)Multiple colors option, white, WW-CW, RGB and RGBW.
(6)3-5 years warranty.

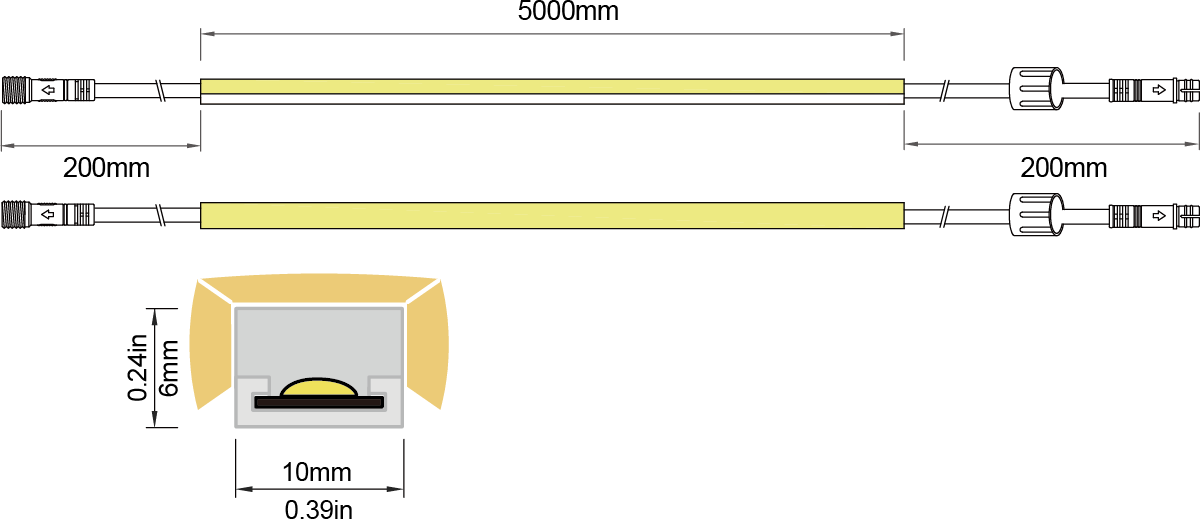

LED Neon Flex 3-face view-Mini:10X6 IP68 Solid Waterproof Technical Specifications

LED Neon Flex 3-face view-Mini:10X6 IP68 Solid Waterproof

Model No. Colour LED
Model
LEDs/M CCT/
Wavelength
Power
(W/M)
Lumens
(lm/M)
CRI Minimum
Cutting
Length(mm)
FPC
Width
(mm)
Maximum
connection
length
NF-Z27480C-Q 2700K COB 480  2600-2800 10.0  680  90  50  8  10M
NF-Z30480C-Q 3000K COB 480  2850-3300 10.0  685  90  50  8  10M
NF-Z40480C-Q 4000K COB 480  3850-4400 10.0  690  90  50  8  10M
NF-Z50480C-Q 5000K COB 480  4800-5400 10.0  690  90  50  8  10M
NF-Z65480C-Q 6500K COB 480  5600-7000 10.0  700  90  50  8  10M
NF-ZRE480C-Q Red COB 480  620-625nm 10.0  238  50  8  10M
NF-ZGR480C-Q Green COB 480  520-525nm 10.0  306  50  8  10M
NF-ZBL480C-Q Blue COB 480  460-465nm 10.0  170  50  8  10M
NF-ZYE480C-Q Yellow COB 480  590-595nm 10.0  390  50  8  10M
NF-ZPI480C-Q Pink COB 480  10.0  350  50  8  10M
NF-ZOR480C-Q Orange COB 480  600-610nm 10.0  180  50  8  10M
NF-ZTW512C-Q WW-CW COB 512  2700-6500 2*6 380  90  62.5  8  10M

Specification Data
