SMD 2216 Series

LED Strip light 2216-120D-10MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 2216-120D-10MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 2216 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

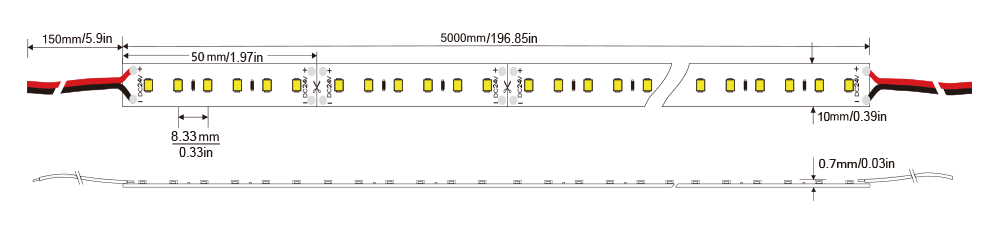

LED Strip light 2216-120D-10MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 2216-120D-10MM-24V IP20-IP65-IP66-IP67-IP68

IP20 10*1.8 IP65 10*2.8 IP66 12.5*4 IP67 11.5*4 IP68 12*5
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-B27120C 2700K 700 135 651 223 602 296 651 272 651 390
**-B30120C 3000K 720 135 669 223 619 296 669 272 669 390
**-B40120C 4000K 746 135 693 223 641 296 693 272 693 390
**-B50120C 5000K 780 135 725 223 670 296 725 272 725 390
**-B65120C 6500K 800 135 744 223 688 296 744 272 744 390

Specification Data
