SMD 2216 Series

LED Strip light 2216-300D-10MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 2216-300D-10MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 2216 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

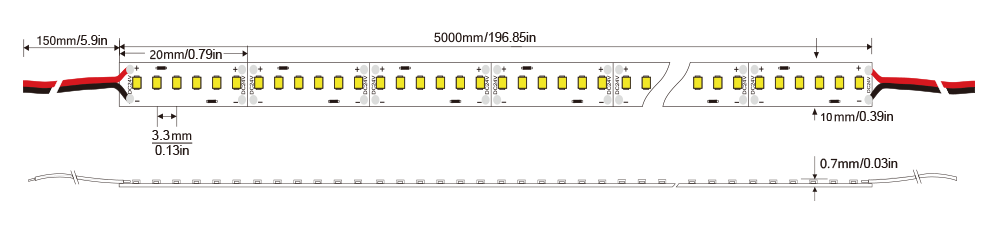

LED Strip light 2216-300D-10MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 2216-300D-10MM-24V IP20-IP65-IP66-IP67-IP68

IP20 10*1.8 IP65 10*2.8 IP66 12.5*4 IP67 11.5*4 IP68 12*5
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-B27300C 2700K 1800 158 1674 260 1550 328 1674 324 1674 428
**-B30300C 3000K 1810 158 1683 260 1556 328 1683 324 1683 428
**-B40300C 4000K 1830 158 1700 260 1573 328 1700 324 1700 428
**-B50300C 5000K 1870 158 1740 260 1600 328 1740 324 1740 428
**-B65300C 6500K 1900 158 1767 260 1634 328 1767 324 1767 428

Specification Data
