SMD 2835 Series

LED Strip light 2835-60D-8MM-24v IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 2835-60D-8MM-24v IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 2835 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

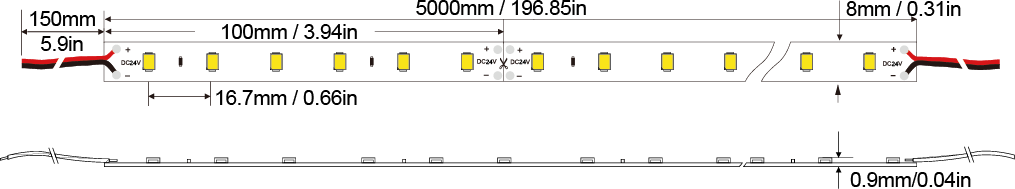

LED Strip light 2835-60D-8MM-24v IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 2835-60D-8MM-24v IP20-IP65-IP66-IP67-IP68

IP20 8*1.4 IP65 8*2.6 IP66 10.5*4 IP67 9.8*3.8 IP68 10.5*4.6
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-C27060C 2700K 525 128 488 215 450 290 488 264 488 380
**-C30060C 3000K 540 128 500 215 464 290 500 264 500 380
**-C40060C 4000K 550 128 510 215 470 290 510 264 510 380
**-C50060C 5000K 580 128 540 215 495 290 540 264 540 380
**-C65060C 6500K 600 128 558 215 515 290 558 264 558 380
**-CRE060C Red 120 128 110 215 103 290 110 264 110 380
**-CGR060C Green 200 128 182 215 172 290 182 264 182 380
**-CBL060C Blue 100 128 92 215 86 290 92 264 92 380
**-CYE060C Yellow 181 128 166 215 155 290 166 264 166 380
**-CPI060C Pink 149 128 137 215 128 290 137 264 137 380
**-CUV060C Purple 4.6 128 4.2 215 3.9 290 4.2 264 4.2 380
**-COR060C Orange 450 128 414 215 387 290 414 264 414 380

Specification Data
