SMD 2835 Series

LED Strip light 2835-240D-10MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 2835-240D-10MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 2835 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

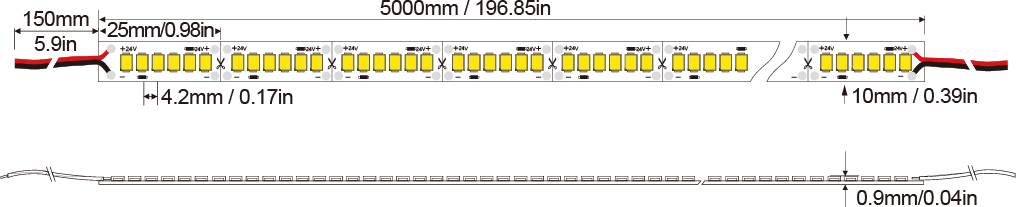

LED Strip light 2835-240D-10MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 2835-240D-10MM-24V IP20-IP65-IP66-IP67-IP68

IP20 10*1.4 IP65 10*2.8 IP66 12.5*4 IP67 11.5*4 IP68 12*5
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-C27240C 2700K 1800 155 1674 258 1550 325 1800 320 1800 425
**-C30240C 3000K 1820 155 1700 258 1565 325 1820 320 1820 425
**-C40240C 4000K 1860 155 1730 258 1600 325 1860 320 1860 425
**-C50240C 5000K 1890 155 1755 258 1625 325 1890 320 1890 425
**-C65240C 6500K 1920 155 1785 258 1650 325 1920 320 1920 425
**-CRE240C Red 400 155 372 258 344 325 372 320 372 425
**-CGR240C Green 666 155 619 258 573 325 619 320 619 425
**-CBL240C Blue 333 155 309 258 286 325 309 320 309 425
**-CYE240C Yellow 603 155 560 258 518 325 560 320 560 425
**-CPI240C Pink 496 155 461 258 426 325 461 320 461 425
**-CUV240C Purple 15 155 14 258 12.9 325 14 320 14 425
**-COR240C Orange 1500 155 1395 258 1290 325 1395 320 1395 425
