SMD 3014 Series

LED Strip light 3014-60D-8MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 3014-60D-8MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 3014 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

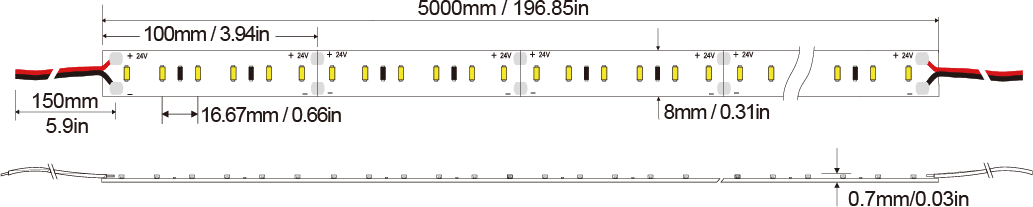

LED Strip light 3014-60D-8MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 3014-60D-8MM-24V IP20-IP65-IP66-IP67-IP68

IP20 8*1.4 IP65 8*2.6 IP66 10.5*4 IP67 9.8*3.8 IP68 10.5*4.6
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-D27060C 2700K 600 125 560 210 520 285 560 260 560 375
**-D30060C 3000K 615 125 570 210 530 285 570 260 570 375
**-D40060C 4000K 620 125 580 210 535 285 580 260 580 375
**-D50060C 5000K 635 125 590 210 545 285 590 260 590 375
**-D65060C 6500K 650 125 605 210 560 285 605 260 605 375

Specification Data
