SMD 3014 Series

LED Strip light 3014-120D-8MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 3014-120D-8MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 3014 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

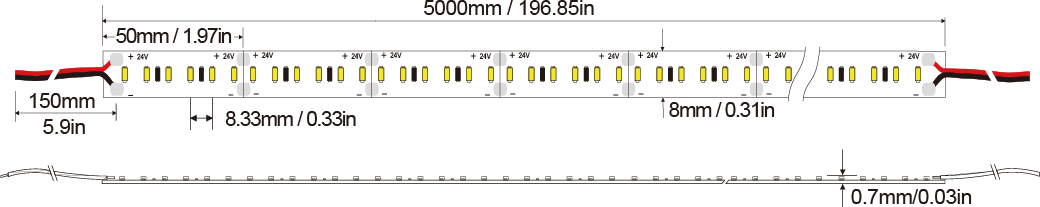

LED Strip light 3014-120D-8MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 3014-120D-8MM-24V IP20-IP65-IP66-IP67-IP68

IP20 8*1.4 IP65 8*2.6 IP66 10.5*4 IP67 9.8*3.8 IP68 10.5*4.6
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-D27120C 2700K 1200 130 1110 215 1030 290 1110 265 1110 380
**-D30120C 3000K 1230 130 1150 215 1050 290 1150 265 1150 380
**-D40120C 4000K 1260 130 1170 215 1085 290 1170 265 1170 380
**-D50120C 5000K 1300 130 1209 215 1115 290 1209 265 1209 380
**-D65120C 6500K 1330 130 1230 215 1140 290 1230 265 1230 380

Specification Data
