SMD 3528 Series

LED Strip light 3528-60D-8MM-12V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 3528-60D-8MM-12V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 3528 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

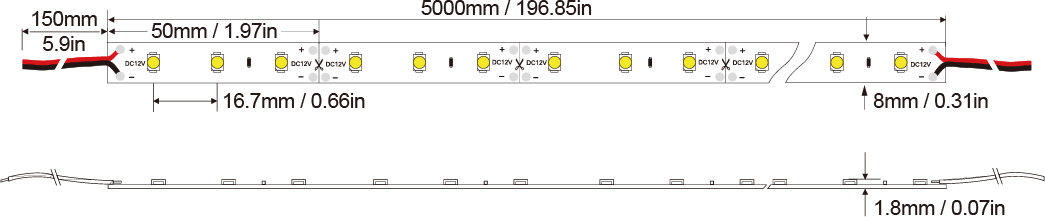

LED Strip light 3528-60D-8MM-12V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 3528-60D-8MM-12V IP20-IP65-IP66-IP67-IP68

IP20 8*1.8 IP65 8*2.8 IP66 10.5*4 IP67 9.8*3.8 IP68 10.5*4.6
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-F27060B 2700K 380 128 350 215 325 290 350 264 350 380
**-F30060B 3000K 390 128 362 215 335 290 362 264 362 380
**-F40060B 4000K 400 128 370 215 344 290 370 264 370 380
**-F50060B 5000K 410 128 380 215 352 290 380 264 380 380
**-F65060B 6500K 420 128 390 215 362 290 390 264 390 380

Specification Data
